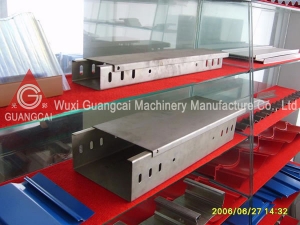

Features
1. The cable tray roll forming machine adopts stepless variable speed drive or spacer to produce different sized cable trays.
2. According to the customer's requirement and the punching demand, the production procedure has two options. One is pre-punching and post-cutting method, and the other is post-cutting and post-cutting method.
3. Usually, one client needs cable trays with a variety of sizes and holes, and we can offer optimized cable tray roll forming machines on the basis of relevant drawings and customer's requirements to fit for practical applications.
Processing Flow
Passive decoiling → guided material feeding → straightening → storing → punching → storing → roll forming→ cut-to-length → offloading
Composition
1. 3T passive decoiler
2. Straightening machine
3. Shape forming machine with servo feeding system
4. Hydraulic shear
5. Hydraulic station
6. Punching machine
7. PLC control cabinet
8. Run out table
Specifications
| Model |
GWC600 |
Note |
| Applicable material |
Galvanized plate |
This machine is customizable upon each customer's requirements and the characteristics of processed material. |
| Feeding width |
172-482mm |
| Processing thickness |
0.8-3.0mm |
| Roller material |
Heat treated bearing steel |
| Main motor power / hydraulic station power |
18kW / 7.5kW |
These parameters can be set according to the required production capacity. |
| Forming passes |
16 |
| Forming speed |
5-15 meters/minute |
| Machine dimensions |
9.5×1.3×1.2m |
| Machine weight |
13T |
