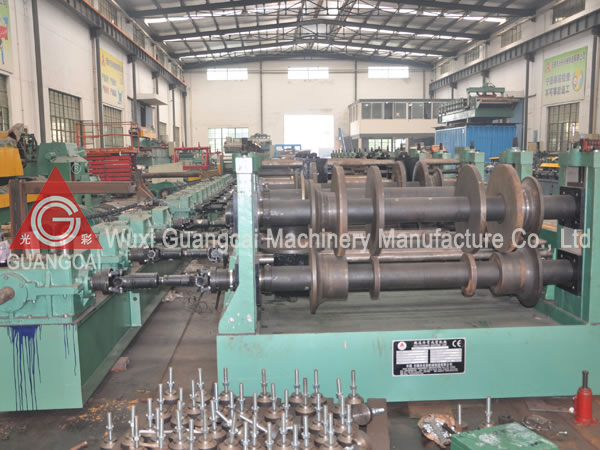

Road Beam Roll Forming Line


The road beam roll forming line is a high quality product, and it can be designed according to customer's requirements. The fabricated road beams are characterized by large thickness and large width, and they are applied to build foundations of roads and bridges. Additionally, a gearbox is equipped, and it serves as the transmission device.

Processing Flow
Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading

Composition
1. 3T passive decoiler
2. Shape forming machine
3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. Run out table

Specifications
Model GWC road beam roll forming line Note
Applicable material Carbon steel This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width ≤1250mm
Processing thickness 1-5mm
Roller material Heat treated bearing steel
Main motor power / hydraulic station power 90kW / 22kW These parameters can be set according to the required production capacity.
Rolling passes 16
Rolling speed 5-15 meters/minute
Machine dimensions 15.5×1.3×1.2m
Machine weight 30T

Related Names
Steel Beam Making Machine | Road Guard Rail Machine | Safety Crash Barrier Production Line
