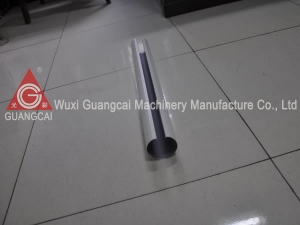

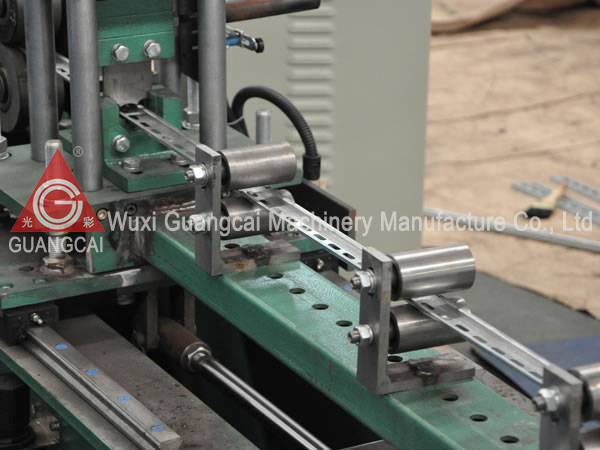

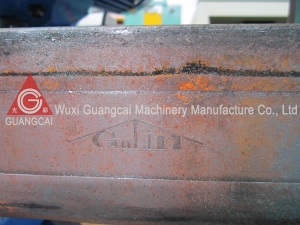

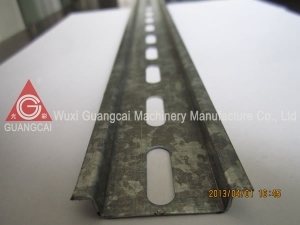

The guide rail roll forming machine realizes punching and lettering functions as requested by customers. The finished guide rails are commonly seen in elevator, doorframe, window frame, curtain track, electrical wiring trough as well as other devices that need sliding system.

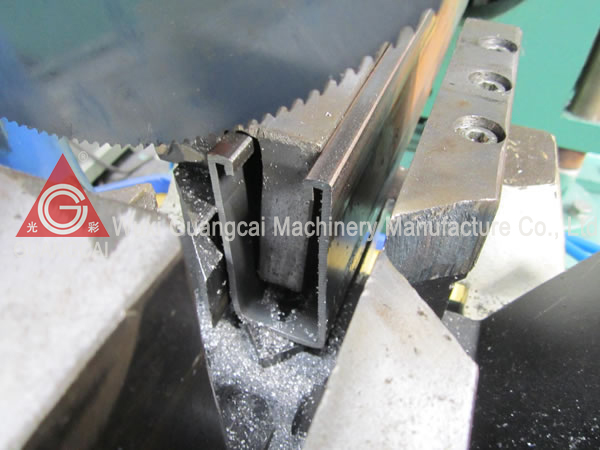

Processing Flow Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading

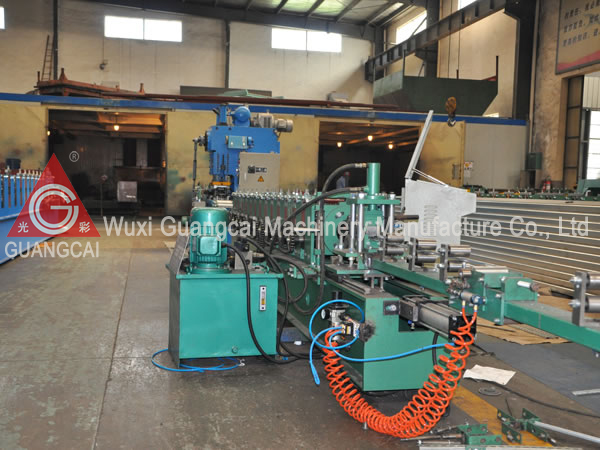

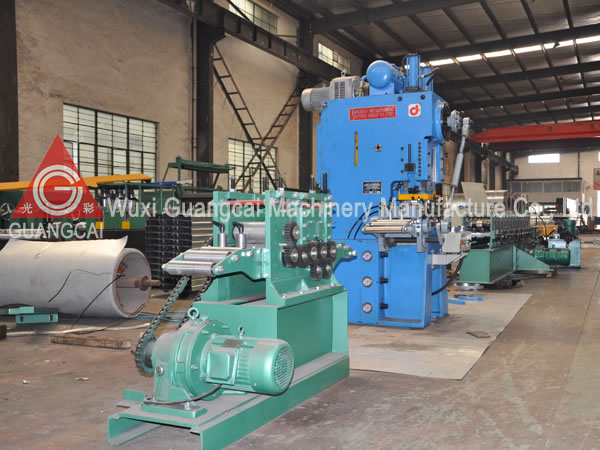

Composition 1. 3T passive decoiler 2. Shape forming machine 3. Hydraulic shear 4. Hydraulic station 5. PLC control cabinet 6. Run out table
Specifications
Product

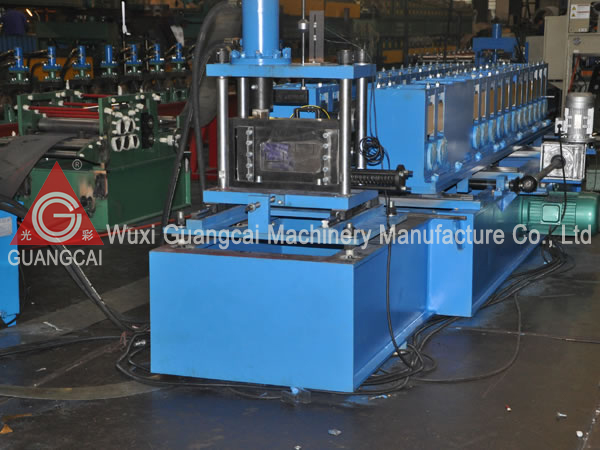

GWC guide rail roll forming machine
Note
Material spec
Galvanized steel and carbon steel
This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width
≤300mm
Processing thickness
0.8-3.0mm
Roller material
Heat treated bearing steel
Main motor power / hydraulic station power
18kW / 5.5kW
These parameters can be set according to the required production capacity.
Rolling passes
16
Rolling speed
5-15 meters/minute
Machine dimensions
11.5×1.3×1.2m
Machine weight
9T
Related Names Linear Rail Making Machine | Metal Rail Cold Forming Equipment | Steel Guideway Machine
